Tins-12E

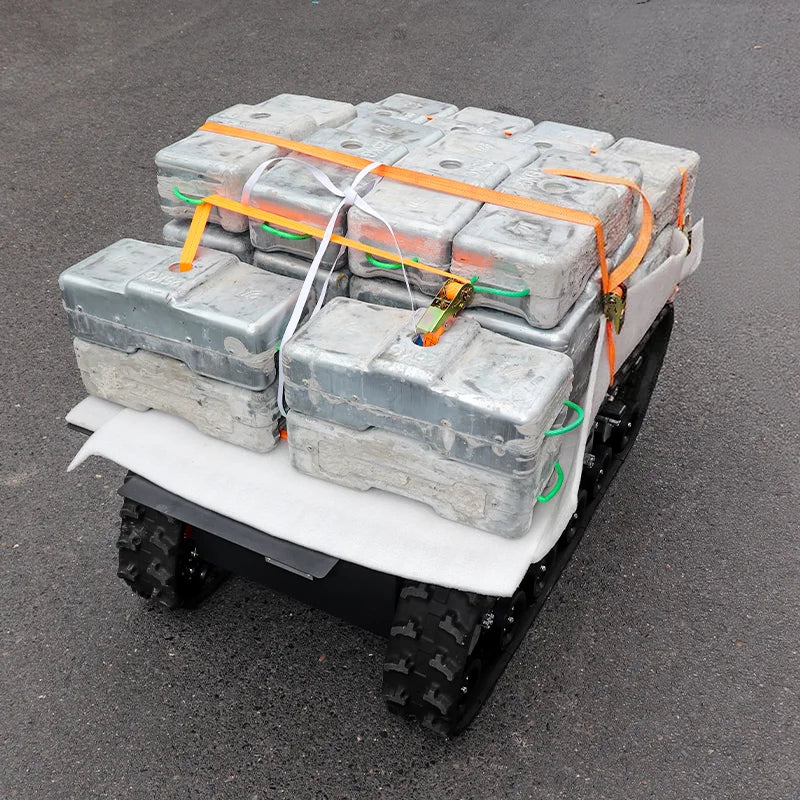

200kg-600kg large payload robot chassis. TinS-12E is mainly for cargo handling.
1
/
of
4
No reviews
FLIPSTYLEZLLC

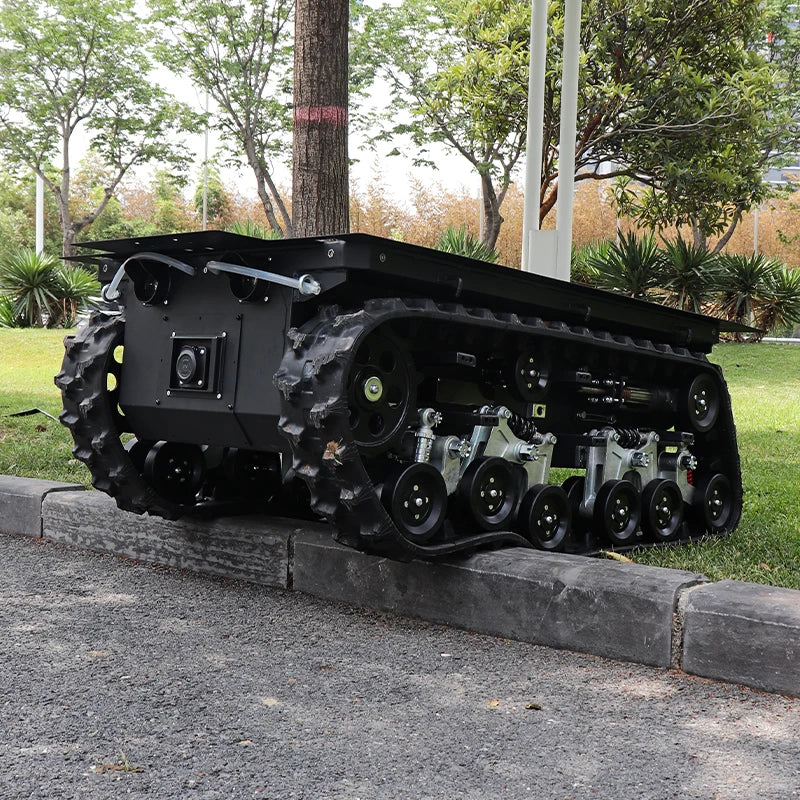

Heavy Load Capacity Industry Delivery Robot Platform with Superior Shock Absorption System, Durable Chassis
Heavy Load Capacity Industry Delivery Robot Platform with Superior Shock Absorption System, Durable Chassis
Regular price
$147,506.00 USD
Regular price
$0.00 USD
Sale price
$147,506.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
SPECIFICATIONS
Brand Name: NONE
Designed Load: 300-600kg
Dimension: 1300*800*500mm
Dimensions: Crawler Dredging Robot
Ground clearance: 150mm
MOQ: 1set
Machinery Test Report: Provided
Model: TinS-12E
Model Number: Pipeline Dredging Robot
Motor Power: 0.75KW*2 / 1.5KW*2
Obstacle crossing ability: 360mm
Origin: Mainland China
Place of Origin: Henan, China
Product name: TinS-12E Robot Chassis
Speed: 3-6.5km/h
Video outgoing-inspection: Provided
Warranty: 1 Year
Waterproof: IP65
Weight: Sewer Dredging Robot
is_customized: Yes
Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com
Top 1150* 750mm large flat plate
Joystick control standard aircraft model remote control and upper computer command control Speed loop+displacement loop+differential loop, precise speed regulation

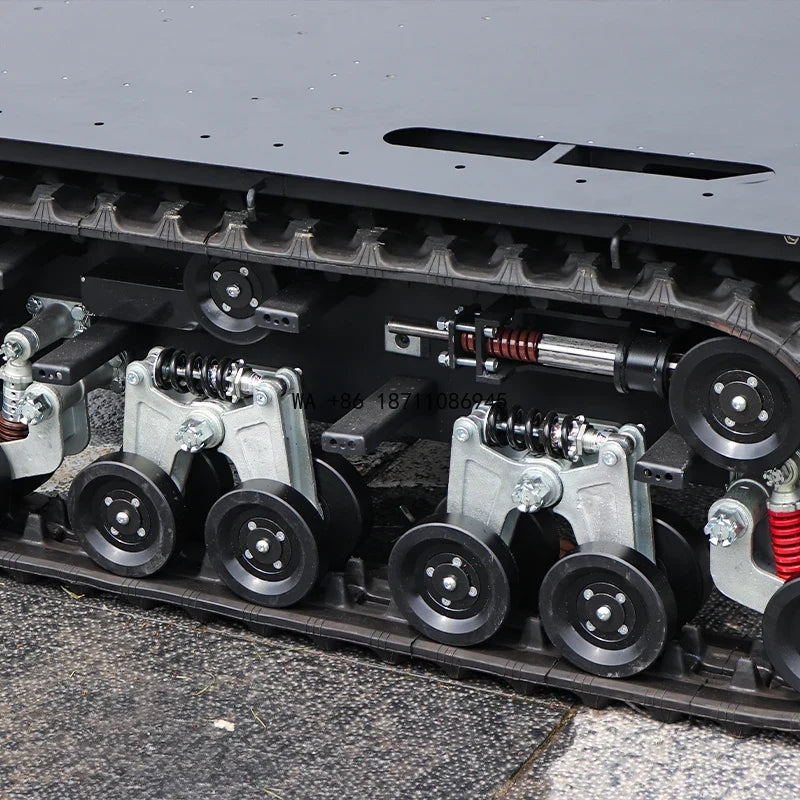

Shock absorption system Matilda suspension combined with Christie shock absorption providing excellent shock absorption system.
Front LED lights High and low beams allows for night driving operations
Lithium iron phosphate battery It has the advantages of high working voltage high energy density, long cycle life, good safety performance low self discharge rate, and no memory effect.
IP65 Waterproof
|
Parameters
|
|
|
|
|||
|
Dimension
|
1300*800*500mm
|
Inner battery space
|
590*400*257mm
|
|||
|
Self Weight
|
210kg (exclude battery)
|
Speed
|
3-6.5km/h (maximum 20km/h high speed customizable)
|
|||
|
Waterproof
|
IP65
|
Designed Load
|
300-600kg
|
|||
|
Track Width
|
150mm
|
Rated Torque
|
350NM (1.5kw, 1:50)
|
|||
|
Gear Ratio
|
1:25-1:50
|
Climbing Ability
|
≤30°(can climb stairs)
|
|||
|
Motor
|
(0.75KW-3KW)*2
|
Motor Rated Speed
|
3000r/min
|
|||
|
Drive wheel diameter
|
260mm
|
Maximum Span
|
320mm
|
|||
|
Ground clearance
|
150mm
|
Obstacle crossing ability
|
265mm
|
|||
|
Maximum 20km/h high speed customizable.
For 2-10 km/h low speed, it will be stopped by the self-locking resistance of the worm gear reducer. For 10-20km/h high speed, with optional internal contracting brake. Optional High, medium and low three-speed precise control on remote controller for speed ≥10km/h. |
|
|
|
Internal contracting brake
electromagnetic brake
It can be equipped with guardrails and as a transportation vehicle.
Parallelogram Shape

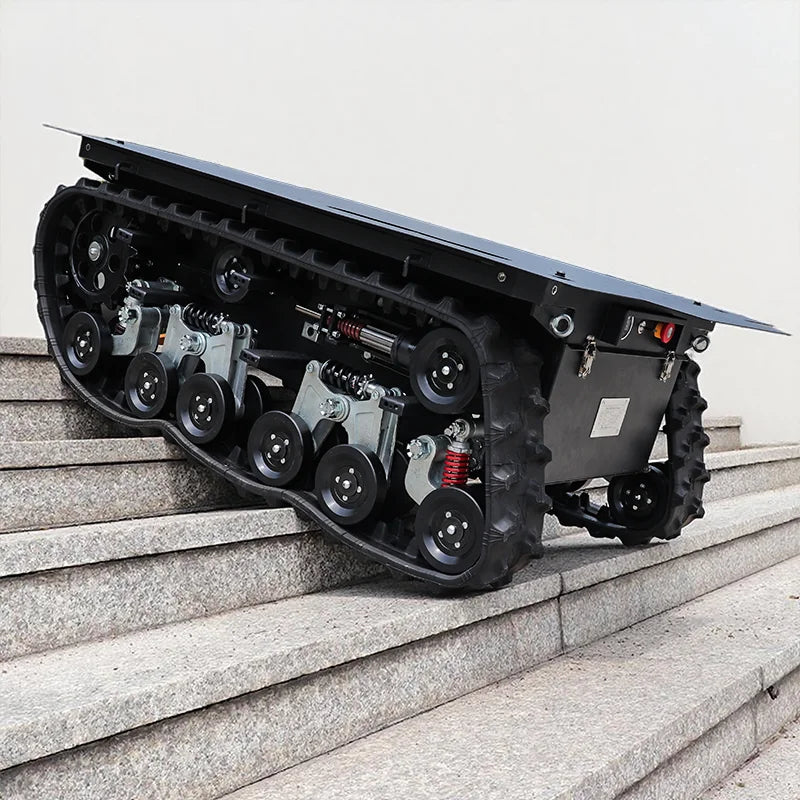

With high ground clearance Strong crossing ability long track grounding area Excellent stair climbing ability.
Communication protocol
Modbus485/CAN/ROS
Easy for customization and secondary development
DC brushless Hall motor or servo motor drive+encoder closed-loop control system, precise control Precise control of steering angle, speed, and stroke It can rotate in place or spiral as needed.
Driver Overvoltage, overcurrent, undervoltage, overheating, short circuit protection
Undervoltage Overheating Short circuit
Rubber tracks Good ground adhesion, long track grounding area.
Tensioning wheel Adjustable to ensure normal tensioning and operation of the track
Application
Widely applied in fields such as safety protection monitoring,robotic arm carriers, lifting platforms, transportation vehicle, etc.
Features：
1.Structural performance: 1)The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains. 2)Top 1150 * 750mm large flat plate, can be equipped with guardrails and as a transportation vehicle. 2. Protection level: IP65. 3. Communication protocol: Modbus485/CAN/ROS. 4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed. 5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection. 6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation. 7. Rubber tracks: good ground adhesion, long track grounding area. 8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track. 9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc. 10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect. 11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system. 12. Switching control of high and low beams allows for night driving operations. 13. Support customization and secondary development.
Packing and Shipping
Within 3-5 working days
|
Services
|
|
|
|
1 year warranty for main parts
|
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
|
|
|
Spare Parts
|
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
|
|
|
Operation and Maintenance
|
we will offer you detailed operation manual, ensuring you can use it perfectly.
|
|
|
Online support
|
Video technical support
|
|
|
Online Service
|
your question will be answer within 24 hours during working days, 48 hours during holiday.
|
|
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
Low price small size models
Tins-3
Dimension：335*325*155mm Self Weight：8kg Loading capacity：6kg (8km/h) 10kg (3km/h)
Tins-6
Dimension：593*460*173MM Payload:20kg Speed：0-4KM/h
Tins-6H
Dimension:660*460*265mm Speed:4km/h/8km/h Designed Load:20kg/40kg
Low price medium size models
Tins-8
Dimension：1060*672*435mm Payload:40-100kg Speed：0-8km/h
Tins-13
Dimension：1300*850*540mm Payload：100-300kg Speed：2.5-12km/h
(maximum 20km/h high speed customizable)
Tins-17
Dimension:1800*1170*660mm Payload：300-700kg Speed：2.5-12km/h
(maximum 20km/h high speed customizable)
Large payload models with excellent shock absorption system
Tins-12E
Dimension：1300*800*500mm Payload：300-600kg Speed：3-6.5km/h
(maximum 20km/h high speed customizable)
Tins-17E
Dimension：2000*1300*710mm Payload:500-1200kg Speed:3-12km/h
(maximum 20km/h high speed customizable)
