Large Load Capacity Industry Delivery Robot Platform with Superior Shock Absorption System, Customizable Robot Chassis

$73,753.00 USD

~~$0.00 USD~~ $73,753.00 USD

Sale Sold out

Shipping calculated at checkout.

Color TinS-12E-Other

RETURN AND REFUND POLICY

View full details

SPECIFICATIONS

Brand Name: NONE

Designed Load: 300-600kg

Dimension: 1300*800*500mm

Dimensions: Crawler Dredging Robot

Ground clearance: 150mm

MOQ: 1set

Machinery Test Report: Provided

Model: TinS-12E

Model Number: Pipeline Dredging Robot

Motor Power: 0.75KW*2 / 1.5KW*2

Obstacle crossing ability: 360mm

Origin: Mainland China

Place of Origin: Henan, China

Product name: TinS-12E Robot Chassis

Speed: 3-6.5km/h

Video outgoing-inspection: Provided

Warranty: 1 Year

Waterproof: IP65

Weight: Sewer Dredging Robot

is_customized: Yes

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com

Tins-12E

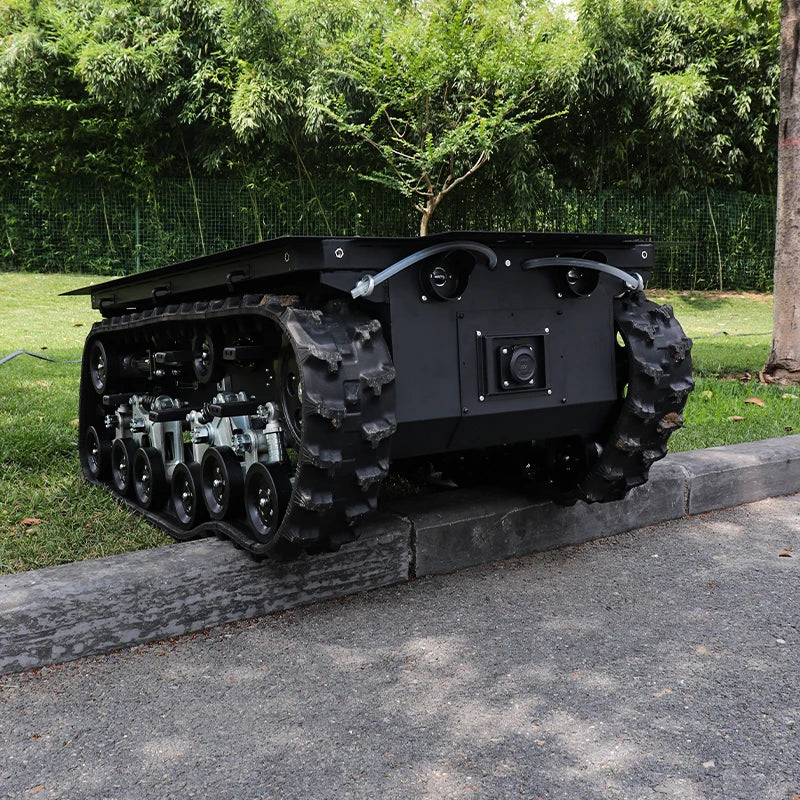

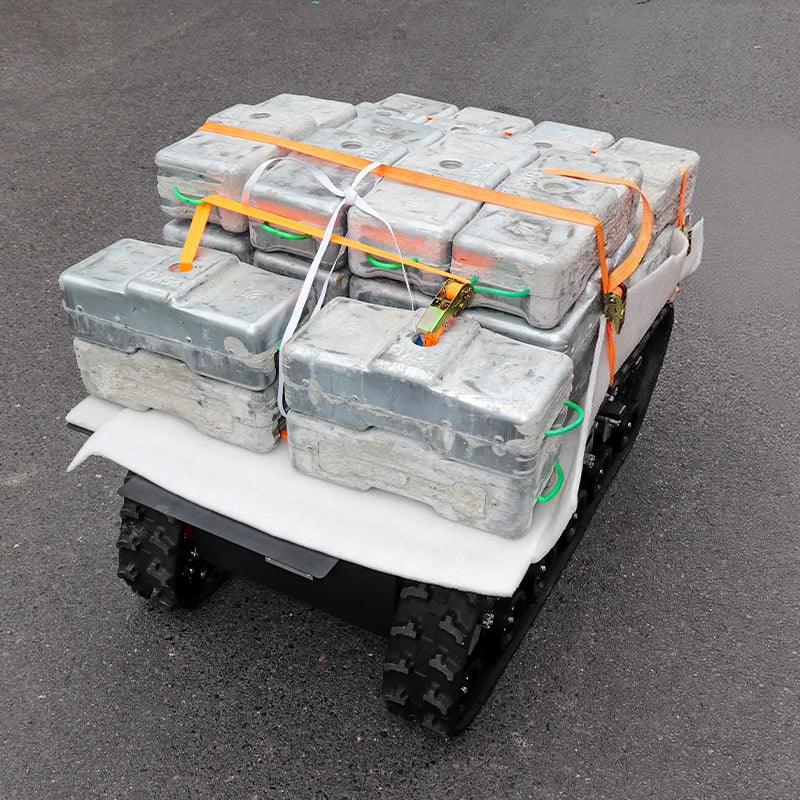

200kg-600kg large payload robot chassis. TinS-12E is mainly for cargo handling.

Parameters
Dimension	1300800500mm	Inner battery space	590400257mm
Self Weight	210kg (exclude battery)	Speed	3-6.5km/h (maximum 20km/h high speed customizable)
Waterproof	IP65	Designed Load	300-600kg
Track Width	150mm	Rated Torque	350NM (1.5kw, 1:50)
Gear Ratio	1:25-1:50	Climbing Ability	≤30°(can climb stairs)
Motor	(0.75KW-3KW)*2	Motor Rated Speed	3000r/min
Drive wheel diameter	260mm	Maximum Span	320mm
Ground clearance	150mm	Obstacle crossing ability	265mm

Maximum 20km/h high speed customizable.
For 2-10 km/h low speed, it will be stopped by the self-locking resistance of the worm gear reducer.
For 10-20km/h high speed, with optional internal contracting brake.
Optional High, medium and low three-speed precise control on remote controller for speed ≥10km/h.

Internal contracting brake

electromagnetic brake

Top 1150* 750mm large flat plate

It can be equipped with guardrails and as a transportation vehicle.

Parallelogram Shape

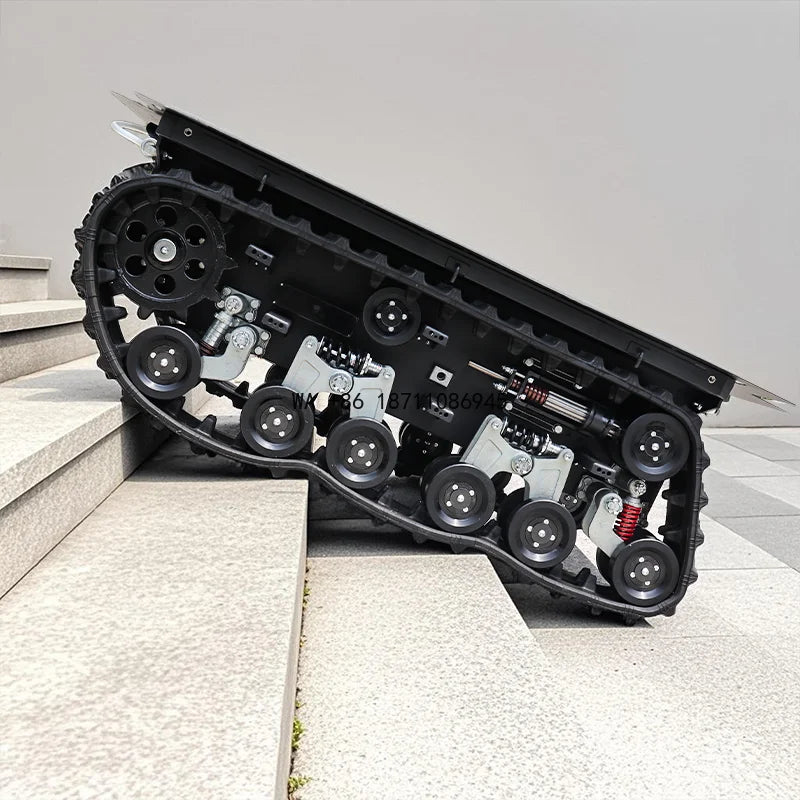

With high ground clearance Strong crossing ability long track grounding area Excellent stair climbing ability.

Communication protocol

Modbus485/CAN/ROS

Easy for customization and secondary development

DC brushless Hall motor or servo motor drive+encoder closed-loop control system, precise control Precise control of steering angle, speed, and stroke It can rotate in place or spiral as needed.

Driver Overvoltage, overcurrent, undervoltage, overheating, short circuit protection

Undervoltage Overheating Short circuit

Joystick control standard aircraft model remote control and upper computer command control Speed loop+displacement loop+differential loop, precise speed regulation

Rubber tracks Good ground adhesion, long track grounding area.

Tensioning wheel Adjustable to ensure normal tensioning and operation of the track

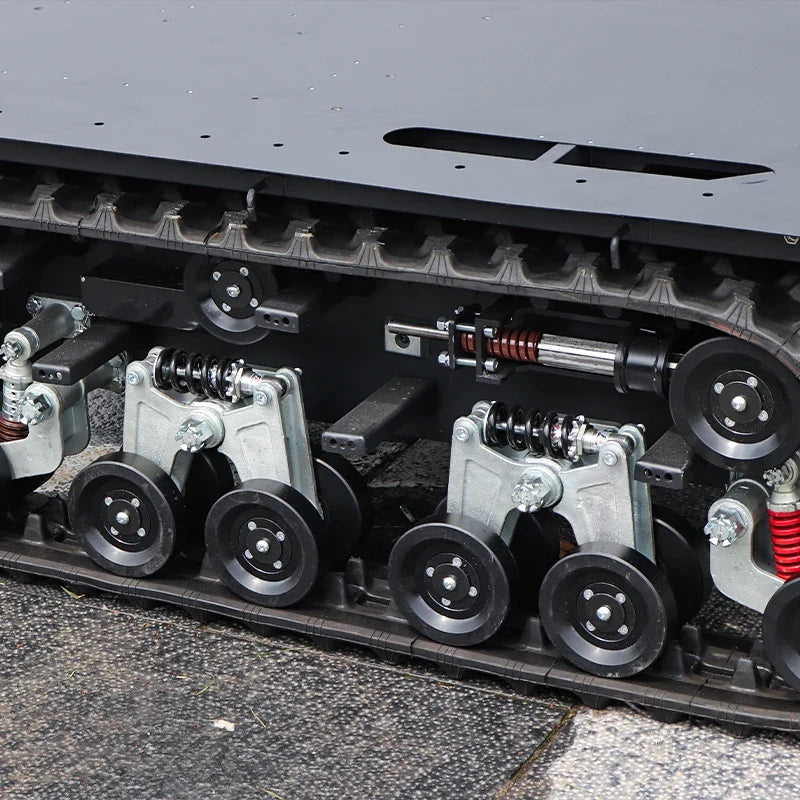

Shock absorption system Matilda suspension combined with Christie shock absorption providing excellent shock absorption system.

Front LED lights High and low beams allows for night driving operations

Lithium iron phosphate battery It has the advantages of high working voltage high energy density, long cycle life, good safety performance low self discharge rate, and no memory effect.

IP65 Waterproof

Application

Widely applied in fields such as safety protection monitoring,robotic arm carriers, lifting platforms, transportation vehicle, etc.

Features：

1.Structural performance: 1)The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains. 2)Top 1150 * 750mm large flat plate, can be equipped with guardrails and as a transportation vehicle. 2. Protection level: IP65. 3. Communication protocol: Modbus485/CAN/ROS. 4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed. 5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection. 6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation. 7. Rubber tracks: good ground adhesion, long track grounding area. 8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track. 9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc. 10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect. 11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system. 12. Switching control of high and low beams allows for night driving operations. 13. Support customization and secondary development.

Packing and Shipping

Within 3-5 working days

Services
1 year warranty for main parts	During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts	most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance	we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support	Video technical support
Online Service	your question will be answer within 24 hours during working days, 48 hours during holiday.
