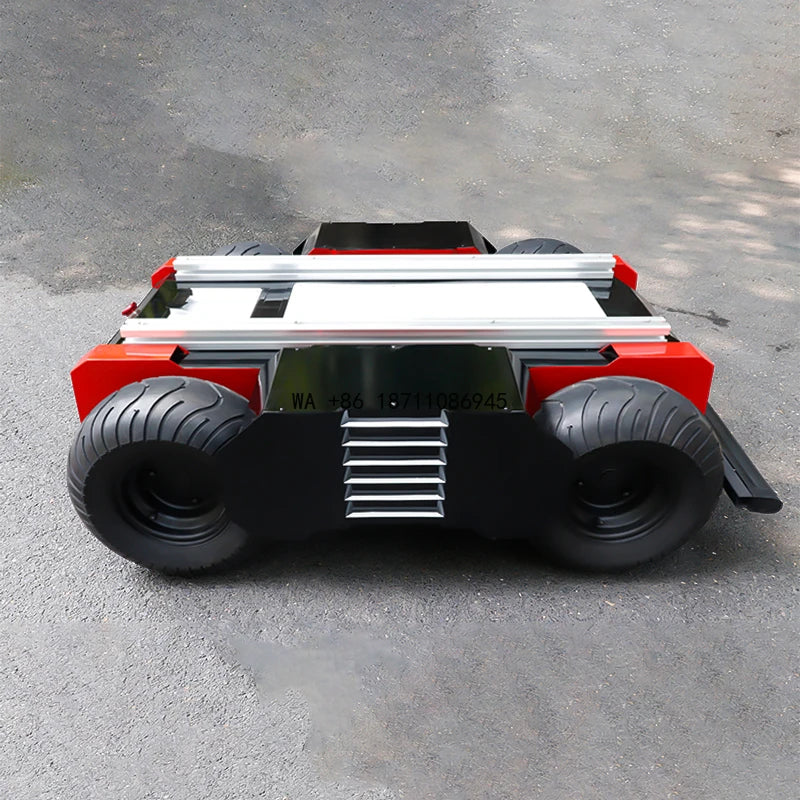

A VT-ZW10
200W*4 four wheel independent drive chassis, strong power, up to 120kg of large load, support in-situ rotation, high precision encoder, servo control.
1
/
of
4
No reviews
FLIPSTYLEZLLC
Robot Development Platform for Smart Control Self Driving Commercial Outdoor Delivery and Unmanned Inspection
Robot Development Platform for Smart Control Self Driving Commercial Outdoor Delivery and Unmanned Inspection
Regular price
$36,551.00 USD
Regular price
$0.00 USD
Sale price
$36,551.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
SPECIFICATIONS
Battery working time: >3H
Brand Name: NONE
Condition: New
Dimension: 1096*800*346mm
Dimensions: Sludge Cleaning Robot
Features: Hub motor
Marketing Type: Ordinary Product
Max playload: 120kg
Maximum Climbing: >25°
Maximum Obstacle: >80mm
Model Number: Dredging Robot
Motor Type: brushless servo motor
Origin: Mainland China
Rated Power: 200W*4
Running Speed: >60m/min
Self Weight: 80kg
Showroom Location: None
Warranty: 1 Year
Warranty of core components: 1 Year
Weight: Underwater Dredging Robot
Wheel Diameter: 320mm
application: Patrol Robot
core components: Motor, Gear
dimension(l*w*h): 1096*800*346mm
is_customized: Yes
machinery test report: Provided
place of origin: Henan, China
power(w): 200W*4
production capacity: 100set/month
video outgoing-inspection: Provided
voltage: 24V, 30AH battery
weight (kg): 80
Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com
Four wheel independent drive, four motors are installed with high-precision photoelectric encoders, vehicle control module based on ARM core plate, not only can accurately control the chassis motor rotation, but also real-time feedback chassis ing information. The structure adopts differential steering, CAN rotate in place, but also integrated CAN/ serial port standard communication protocol, convenient for users to quickly docking secondary development.
Introduction:
AVT-ZW10 is widely for secondary development of robotic products. You can build on your own robot kit with it. It is auniversal unmanned chassis designed for indoor and outdoor scenes. It is a heavy-duty chassis with a load of more than 120kg.
Four wheel independent drive, four motors are installed with high-precision photoelectric encoders, vehicle control module based on ARM core plate, not only can accurately control the chassis motor rotation, but also real-time feedback chassis ing information. The structure adopts differential steering, CAN rotate in place, but also integrated CAN/ serial port standard communication protocol, convenient for users to quickly docking secondary development.
|
Parameters
|
|
|
|
|||
|
Dimension:
|
1096*799*346mm
|
Endurance distance (with load):
|
10KM
|
|||
|
Self Weight:
|
80kg
|
Battery working time:
|
3H
|
|||
|
Max playload:
|
100kg
|
Working temperature:
|
-20°C-60°C
|
|||
|
Wheel Diameter:
|
330mm
|
Maximum Climbing:
|
30°
|
|||
|
Motor Type:
|
brushless servo motor
|
Ground ClearanceL:
|
120mm
|
|||
|
Rated Power:
|
200W*4
|
Waterproof:
|
IP54
|
|||
|
Running Speed:
|
3.6km/h
|
Battery:
|
24V 30Ah
|
|||
Packing and Shipping
Within 3-5 working days
|
Services
|
|
|
|
1 year warranty for main parts
|
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
|
|
|
Spare Parts
|
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
|
|
|
Operation and Maintenance
|
we will offer you detailed operation manual, ensuring you can use it perfectly.
|
|
|
Online support
|
Video technical support
|
|
|
Online Service
|
your question will be answer within 24 hours during working days, 48 hours during holiday.
|
|
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
